Ranges show up constantly in array problems — querying the sum of a segment, updating a segment. If every operation re-scans the range from scratch, the cost stacks up linearly with the number of operations, easily going from $O(n)$ to $O(n^2)$ or worse.

Prefix sum and difference array exist to solve exactly this: spend $O(n)$ once up front, and trade away the cost of every operation that follows — querying a range sum drops to $O(1)$, updating a range also drops to $O(1)$. It’s one of the most basic trade space for time techniques — roughly speaking, seeing many repeated range-sum queries or many repeated range updates should immediately bring these two to mind.

Prefix Sum

Start with a problem (see LeetCode 303): given an integer array, and a series of queries, each query is a pair [l, r], and you need to return the sum of nums[l] through nums[r] (inclusive). For example:

1
nums = [1, 3, 5, 7, 9, 11]

Example queries:

  • query(1, 3): 3 + 5 + 7 = 15
  • query(0, 5): 1 + 3 + 5 + 7 + 9 + 11 = 36
  • query(2, 2): 5 = 5

The obvious approach uses Python’s slicing:

1
2
3
4
5
6
7
class NumArray:

    def __init__(self, nums: List[int]):
        self.nums = nums

    def sumRange(self, left: int, right: int) -> int:
        return sum(self.nums[left:right + 1])

There’s a problem though: if sumRange gets called $q$ times during judging — fine if $q$ is small, but the problem’s constraints already allow up to $10^{4}$ calls — the time complexity gets pulled up to $O(n \times q)$, which very likely times out.

Break the problem down: since we already know queries will keep coming in over ranges [l, r], why not precompute the sum of the first i elements up front and store it in an array? The running total of the first i elements becomes:

1
prefix = [0, 1, 4, 9, 16, 25, 36]

Say we want query(1, 3), and we already know the answer is 15 — this value comes from 16 - 1, i.e. prefix[4] - prefix[1]. Writing out the general form of query(l, r):

1
query(l, r) = prefix[r + 1] - prefix[l]

Proof:

Proof

Let the original nums be $a$, and prefix be $p$. First write out the two prefix expressions:

Subtracting the two gives:

Which is exactly query(l, r).

$\square$

Written as a general algorithm:

1
2
3
4
5
6
7
8
Algorithm 1 Build Prefix Sum
    procedure BuildPrefixSum(A)
        prefix[0] = 0
        for i = 1 to A.length do
            prefix[i] = prefix[i - 1] + A[i - 1]
        end for
        return prefix
end procedure
1
2
3
4
Algorithm 2 Range Sum Query
    procedure RangeSum(prefix, l, r)
        return prefix[r + 1] - prefix[l]
end procedure

Algorithm 1 builds the table in $O(n)$, Algorithm 2 answers each query in $O(1)$ — together they make up the complete prefix-sum playbook.

Implementation:

1
2
3
4
5
6
7
8
9
class NumArray:
    def __init__(self, nums: List[int]):
        n = len(nums)
        self.prefix = [0] * (n + 1)
        for i, num in enumerate(nums):
            self.prefix[i + 1] = self.prefix[i] + num

    def sumRange(self, left: int, right: int) -> int:
        return self.prefix[right + 1] - self.prefix[left]

Suffix Sum

Prefix sum handles “the sum from the start up to some position”; suffix sum flips it around — the sum from some position to the end of the array. Same pattern, opposite direction.

Suffix sum rarely shows up alone — it’s usually paired with prefix sum. A classic example: find a position (not counting itself) where the sums on either side are equal, i.e. find the pivot.

Problem (see LeetCode 724): given an integer array, find an index i such that the sum of nums[0] through nums[i - 1] equals the sum of nums[i + 1] through the end. Return -1 if no such index exists.

Brute-force approach:

1
2
3
4
5
6
class Solution:
    def pivotIndex(self, nums: List[int]) -> int:
        for i in range(len(nums)):
            if sum(nums[:i]) == sum(nums[i + 1:]):
                return i
        return -1

Two sum() calls per iteration push the time complexity to $O(n^{2})$, easy to time out.

Since we’re looking for a pivot, prefix sum and suffix sum become the natural fit: build two arrays — one accumulating from the front, one from the back — then scan through once and return the first index where the two accumulated values match. Implementation:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
class Solution:
    def pivotIndex(self, nums: List[int]) -> int:
        n = len(nums)
        prefix = [0] * (n + 1)
        suffix = [0] * (n + 1)

        for i, num in enumerate(nums):
            prefix[i + 1] = prefix[i] + num
        for i in range(n - 1, -1, -1):
            suffix[i] = suffix[i + 1] + nums[i]

        for i in range(n):
            if prefix[i] == suffix[i + 1]:
                return i
        return -1

Difference Array

Prefix sum handles many queries; a difference array handles the opposite situation: the same array gets many range updates — adding v to every element in [l, r] — and you only need the final result once all updates are done.

Same approach: look at the problem first. Given the following integer array:

1
nums = [0, 0, 0, 0, 0]

Apply these updates in order:

  • update(0, 2, 5): add 5 to indices 0 through 2 → [5, 5, 5, 0, 0]
  • update(1, 3, 3): add 3 to indices 1 through 3 → [5, 8, 8, 3, 0]
  • update(2, 4, 2): add 2 to indices 2 through 4 → [5, 8, 10, 5, 2]

Final result: [5, 8, 10, 5, 2].

Same as before, start with the obvious approach:

1
2
3
4
5
6
7
8
class NumArray:
    def __init__(self, nums: list[int]):
        self.nums = nums

    def update(self, left: int, right: int, value: int) -> list[int]:
        for i in range(left, right + 1):
            self.nums[i] += value
        return self.nums

Each update loops over r - l + 1 elements, $O(n)$ in the worst case; m updates cost $O(n \times m)$ total.

A difference array is really just an extension of prefix sum — only left and right + 1 need to change:

Proof

Let the original array be $a$. After one update(l, r, v), the new array $a^{\prime}$ is:

Define the difference array of some array $c$ as $d_{i} = c_{i} - c_{i-1}$ (with $c_{-1} = 0$ by convention). This is exactly the inverse of prefix sum — $c$ can be recovered from $d$ by taking a prefix sum:

Now check which positions change in the difference array as $a$ becomes $a^{\prime}$, i.e. as $d$ becomes $d^{\prime}$:

Position $a^{\prime}_{i}$ $a^{\prime}_{i-1}$ Result
$i < \ell$ $a_{i}$ (unaffected) $a_{i-1}$ (unaffected) $d^{\prime}_{i} = d_{i}$
$i = \ell$ $a_{\ell} + v$ $a_{\ell-1}$ (unaffected) $d^{\prime}_{\ell} = d_{\ell} + v$
$\ell < i \le r$ $a_{i} + v$ $a_{i-1} + v$ $d^{\prime}_{i} = d_{i}$ (cancels)
$i = r + 1$ $a_{r+1}$ (unaffected) $a_{r} + v$ $d^{\prime}_{r+1} = d_{r+1} - v$
$i > r + 1$ $a_{i}$ (unaffected) $a_{i-1}$ (unaffected) $d^{\prime}_{i} = d_{i}$

A whole range update only changes two positions in the difference array: $d_{\ell}$ gains $v$, $d_{r+1}$ loses $v$, everything else stays the same.

$\square$

Written as a general algorithm:

1
2
3
4
5
6
7
Algorithm 3 Range Update via Difference Array
    procedure RangeUpdate(diff, l, r, v)
        diff[l] = diff[l] + v
        if r + 1 < diff.length then
            diff[r + 1] = diff[r + 1] - v
        end if
end procedure
1
2
3
4
5
6
7
8
Algorithm 4 Reconstruct Array from Difference Array
    procedure Reconstruct(diff)
        result[0] = diff[0]
        for i = 1 to diff.length - 1 do
            result[i] = result[i - 1] + diff[i]
        end for
        return result
end procedure

Algorithm 3 is $O(1)$ per update; Algorithm 4 gets called exactly once after every update is done, spending $O(n)$ to reconstruct the whole array — together they make up the complete difference-array playbook.

Implementation:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
class NumArray:
    def __init__(self, nums: list[int]):
        n = len(nums)
        self.nums = nums
        self.diff = [0] * n

    def update(self, left: int, right: int, value: int) -> list[int]:
        self.diff[left] += value
        if right + 1 < len(self.diff):
            self.diff[right + 1] -= value

    def result(self) -> list[int]:
        result = [0] * len(self.diff)
        result[0] = self.diff[0]
        for i in range(1, len(self.diff)):
            result[i] = result[i - 1] + self.diff[i]
        return result

2D Prefix Sum

Prefix sum only handles range sums on a 1D array. Switch to a 2D matrix and the problem becomes querying the sum of an arbitrary rectangular region, over and over. The same idea applies directly — spend $O(r \times c)$ ($r$ rows, $c$ columns) precomputing once, and every query afterward drops to $O(1)$.

Start with the problem (see LeetCode 304). Given a 2D matrix, sumRegion(row1, col1, row2, col2) gets called many times, returning the sum of all elements in the rectangle with top-left (row1, col1) and bottom-right (row2, col2).

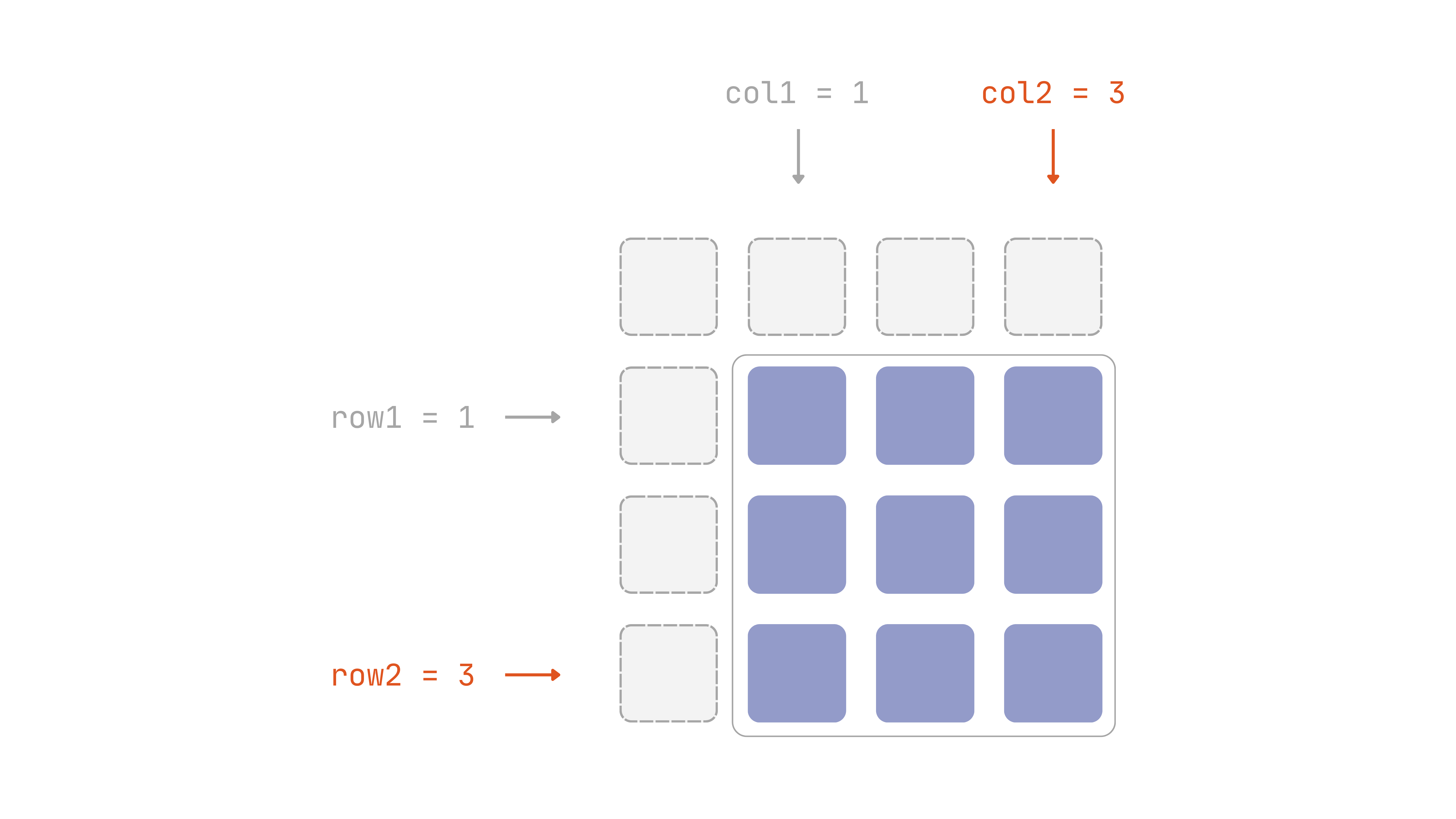

2D matrix region query diagram
Fig 1: 2D matrix region query diagram

The obvious approach is just a double loop:

1
2
3
4
5
6
7
8
9
10
11
class NumMatrix:

    def __init__(self, matrix: List[List[int]]):
        self.matrix = matrix

    def sumRegion(self, row1: int, col1: int, row2: int, col2: int) -> int:
        total = 0
        for i in range(row1, row2 + 1):
            for j in range(col1, col2 + 1):
               total += self.matrix[i][j]
        return total

But that same double loop is exactly why it’s easy to time out — called $q$ times, the time complexity is $O(r \times c \times q)$.

Apply the same idea to two dimensions: build a prefix array the same size as matrix but with one extra row and column around the outside (same reason as prefix[0] = 0 in the 1D case — so boundary queries don’t need special-casing). Define prefix[i][j] as the sum of the rectangle from the top-left corner (0, 0) to (i - 1, j - 1).

Take the matrix below as an example:

1
2
3
4
5
6
7
matrix = [
    [3, 0, 1, 4, 2],
    [5, 6, 3, 2, 1],
    [1, 2, 0, 1, 5],
    [4, 1, 0, 1, 7],
    [1, 0, 3, 0, 5],
]

Suppose we’ve already computed:

1
2
3
prefix[1][2] = 3
prefix[2][1] = 8
prefix[2][2] = 14

Building already-computed values like prefix[2][3], prefix[3][2] isn’t hard, but to build prefix[3][3], can we combine just the already-computed prefix values above and to the left? The answer: prefix[i-1][j] + prefix[i][j-1] double-counts the top-left block prefix[i-1][j-1] once, so subtract it back out once, then add the newly-included cell matrix[i-1][j-1]:

1
2
prefix[i][j] = prefix[i - 1][j] + prefix[i][j - 1]
               - prefix[i - 1][j - 1] + matrix[i - 1][j - 1]
Proof

Let the matrix be $A$, and its 2D prefix sum be $P$, defined as:

Check what range each of $P_{i-1,j} + P_{i,j-1}$ covers:

Adding the two, the top-left region $x \in [0, i-2]$, $y \in [0, j-2]$ appears in both, so it’s counted twice:

And $P_{i-1,j-1} = \sum_{x=0}^{i-2} \sum_{y=0}^{j-2} A_{x,y}$ is exactly that over-counted top-left block, so subtract it once:

This is exactly $P_{i,j} = \sum_{x=0}^{i-1} \sum_{y=0}^{j-1} A_{x,y}$ minus the last cell $A_{i-1,j-1}$, so add that back:

$\square$

With prefix built, querying uses the same inclusion-exclusion trick: sumRegion(row1, col1, row2, col2) starts from the whole large rectangle from the top-left to (row2, col2), prefix[row2+1][col2+1], subtracts the left strip prefix[row2+1][col1], subtracts the top strip prefix[row1][col2+1] — these two strips overlap once in the top-left corner (prefix[row1][col1]), subtracted twice, so add it back once:

1
2
3
sumRegion(row1, col1, row2, col2)
    = prefix[row2 + 1][col2 + 1] - prefix[row1][col2 + 1]
      - prefix[row2 + 1][col1] + prefix[row1][col1]

Written as a general algorithm:

1
2
3
4
5
6
7
8
9
10
Algorithm 5 Build 2D Prefix Sum
    procedure Build2DPrefixSum(M)
        for i = 1 to M.rows do
            for j = 1 to M.cols do
                prefix[i][j] = prefix[i - 1][j] + prefix[i][j - 1]
                             - prefix[i - 1][j - 1] + M[i - 1][j - 1]
            end for
        end for
        return prefix
end procedure
1
2
3
4
5
Algorithm 6 2D Range Sum Query
    procedure RangeSum2D(prefix, row1, col1, row2, col2)
        return prefix[row2 + 1][col2 + 1] - prefix[row1][col2 + 1]
             - prefix[row2 + 1][col1] + prefix[row1][col1]
end procedure

Algorithm 5 builds the table in $O(r \times c)$, Algorithm 6 answers each query in $O(1)$ — together they make up the complete 2D prefix-sum playbook.

Implementation:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
class NumMatrix:
    def __init__(self, matrix: List[List[int]]):
        rows, cols = len(matrix), len(matrix[0])
        self.prefix = [[0] * (cols + 1) for _ in range(rows + 1)]
        for i in range(rows):
            for j in range(cols):
                self.prefix[i + 1][j + 1] = (
                    self.prefix[i][j + 1] + self.prefix[i + 1][j]
                    - self.prefix[i][j] + matrix[i][j]
                )

    def sumRegion(self, row1: int, col1: int, row2: int, col2: int) -> int:
        return (
            self.prefix[row2 + 1][col2 + 1]
            - self.prefix[row1][col2 + 1]
            - self.prefix[row2 + 1][col1]
            + self.prefix[row1][col1]
        )

Solutions

LeetCode 1732: Find the Highest Altitude

Problem

Given an integer array gain of length n, where gain[i] is the net altitude change from point i to point i + 1. The starting point (point 0) has altitude 0. Return the highest altitude reached over the whole trip.

Example

1
2
Input: gain = [-5,1,5,0,-7]
Output: 1

A very direct application of prefix sum. Implementation:

1
2
3
4
5
6
7
8
9
class Solution:
    def largestAltitude(self, gain: List[int]) -> int:
        n = len(gain)
        prefix = [0] * (n + 1)

        for i, num in enumerate(gain):
            prefix[i + 1] = prefix[i] + gain[i]

        return max(prefix)

There’s no real need to keep a full prefix array around, though — a single running variable, updated as you go while tracking the max, gets space down to $O(1)$:

1
2
3
4
5
6
7
8
class Solution:
    def largestAltitude(self, gain: List[int]) -> int:
        altitude = 0
        highest = 0
        for g in gain:
            altitude += g
            highest = max(highest, altitude)
        return highest

LeetCode 238: Product of Array Except Self

Problem

Given an integer array nums, return an array answer where answer[i] is the product of every element in nums except nums[i], without using division, in $O(n)$ time.

Example

1
2
Input: nums = [1,2,3,4]
Output: [24,12,8,6]

Same idea as finding the pivot — since it excludes itself, do one forward pass storing each position’s left-side product into result[i], then one backward pass multiplying in the right-side product. Both passes only need a single running variable (prefix, suffix) — no need to actually keep two full arrays:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
class Solution:
    def productExceptSelf(self, nums: List[int]) -> List[int]:
        n = len(nums)
        result = [1] * n

        prefix = 1
        for i, num in enumerate(nums):
            result[i] = prefix
            prefix *= num

        suffix = 1
        for i in reversed(range(n)):
            result[i] *= suffix
            suffix *= nums[i]

        return result

LeetCode 1109: Corporate Flight Bookings

Problem

There are n flights, numbered 1 through n. Given a 2D array bookings, where bookings[i] = [first, last, seats] means seats seats should be reserved on every flight from first through last (inclusive). Return an array of length n giving the total number of seats reserved on each flight.

Example

1
2
Input: bookings = [[1,2,10],[2,3,20],[2,5,25]], n = 5
Output: [10,55,45,25,25]

Nearly identical to the difference-array example earlier — almost a direct application. Just note that since flight numbers are 1-indexed, left needs to be decremented by 1 when converting to an array index.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
class Solution:
    def corpFlightBookings(self, bookings: List[List[int]], n: int) -> List[int]:
        diff = [0] * n
        result = [0] * n

        for booking in bookings:
            left, right, value = booking[0], booking[1], booking[2]
            diff[left - 1] += value
            if right < n:
                diff[right] -= value

        result[0] = diff[0]
        for i in range(1, len(diff)):
            result[i] = result[i - 1] + diff[i]

        return result
